Various Styling Options

A small SaaS team builds a help-desk product. One of the screens is a knowledge-base article editor. The first prototype ships with the WinForms HTML Editor dropped onto a Form with no customization. The first internal demo goes well, except for one comment from the founder: "the editor looks like a different application than the rest of the help desk. Times New Roman, white background, black text. Our brand is Inter on cream with a navy heading color." The developer nods and goes back to the IDE.

The temptation, the first time, is to handle this per-element -- to set fonts via the toolbar and call it done. That works for one document. It does not work for the defaults: the cursor blink in a brand-new article still sits in Times New Roman. What the team actually needs are document-level defaults, plus a place to inject the corporate stylesheet so headings and callouts pick up brand styling automatically.

Two scopes, two API groups

The editor splits document-level styling into two scopes: body styling and head styling. The body group writes inline style directly onto the <body> element -- typing font, body background, default text color. The head group injects either a linked stylesheet (<link rel="stylesheet">) or an inline style block (<style>) into the document's <head>.

The body group

Five typed properties on WinFormHtmlEditor push values directly into body.style.*:

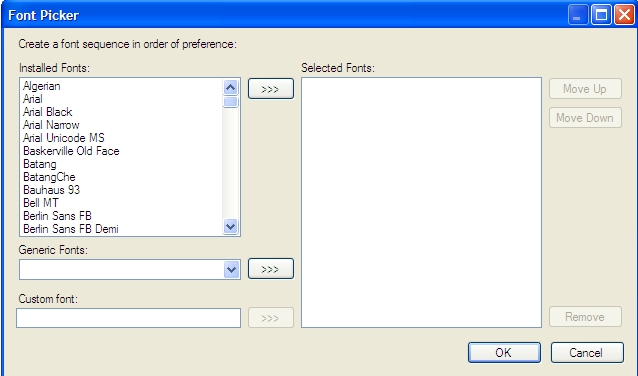

DefaultFontFamily -- writes body.style.fontFamily. Set this once at startup and every new paragraph the user types inherits it.
DefaultFontSizeInPt -- writes body.style.fontSize. Always include the unit: pass "11pt" for 11 point. A bare "11" is treated as pixels and converted to its pt equivalent for display.
DefaultForeColor -- writes body.style.color as a System.Drawing.Color.
BodyColor -- writes document.bgColor for the body background. Also a System.Drawing.Color.

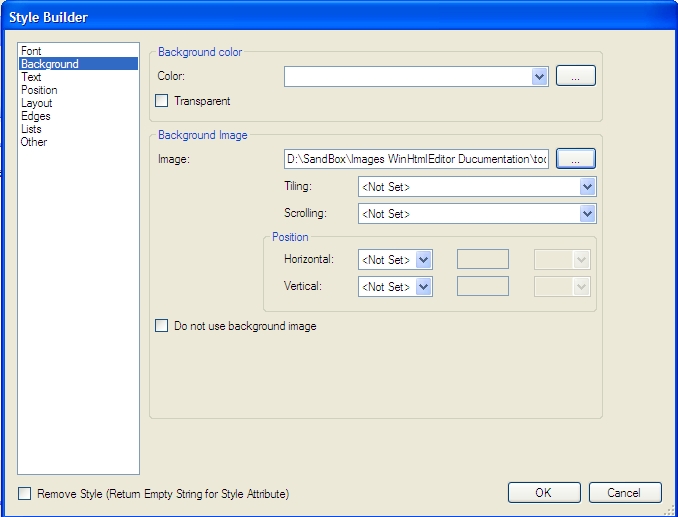

BackgroundImagePath -- writes body.style.backgroundImage as a single url(...). Pass an empty string to clear it.

Two more body-level properties take raw strings rather than typed values, and they exist for the cases the typed properties cannot express:

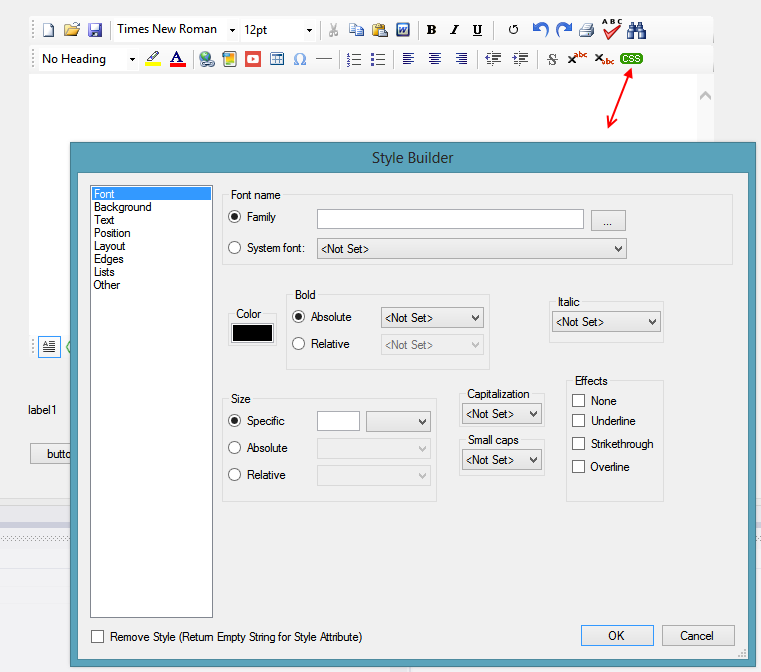

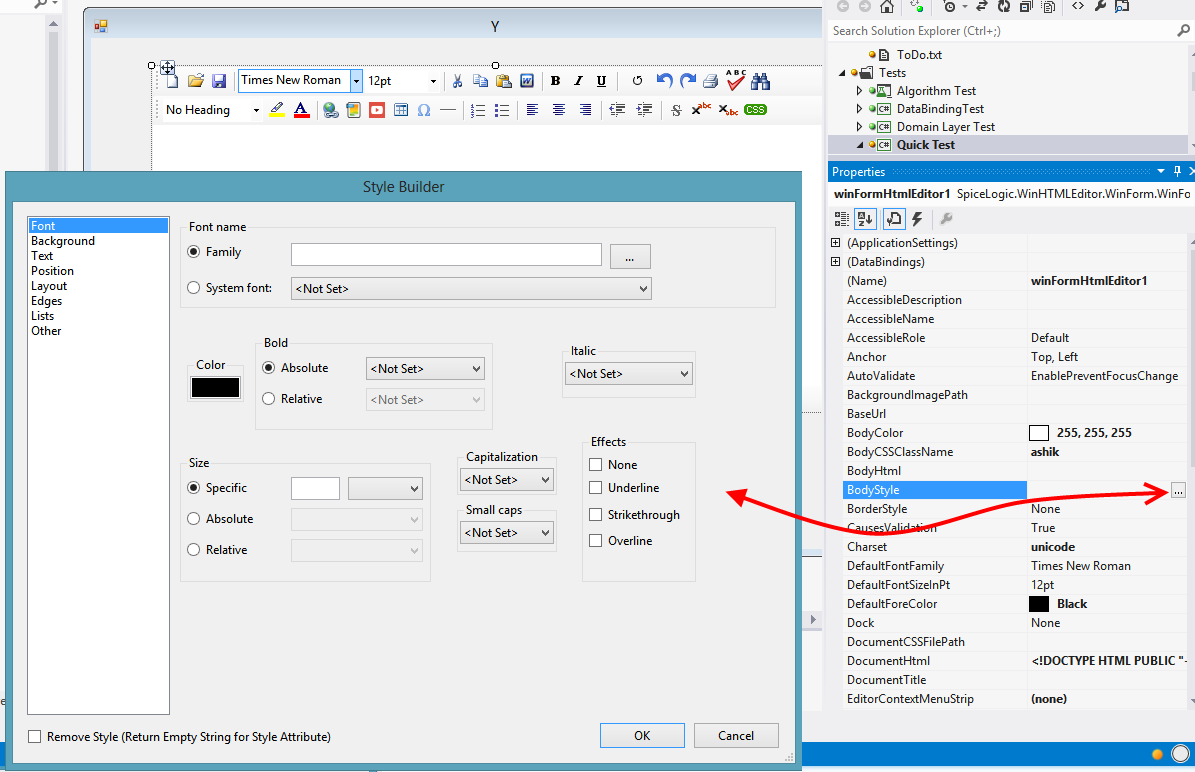

BodyStyle -- the literal value of the body's style attribute. Useful when several CSS rules need to be set together: htmlEditor1.BodyStyle = "background:#FBF7F2; font-family:Inter; font-size:11pt; color:#0A2540;";
BodyCSSClassName -- the value of the body's class attribute. Pair it with a CSS rule in the head (e.g., body.kb-article { ... }) to scope CSS by class.

The head group

Two properties on the editor manage what lives in the document head:

DocumentCSSFilePath -- the href of a <link rel="stylesheet"> element. Assign a path or URL and the editor inserts the link the first time, then updates it on every later assignment. Assign an empty string and the editor removes the link. Useful when the help-desk team already maintains brand.css as part of their public web property and wants the editor to render against the same rules.

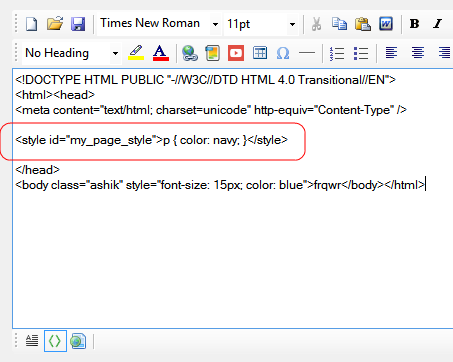

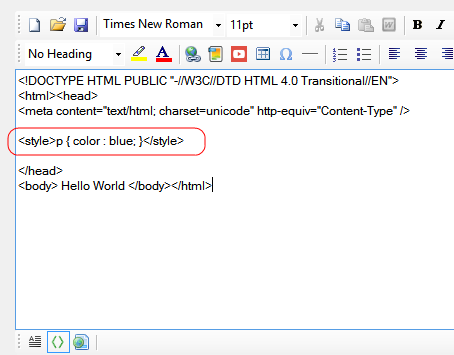

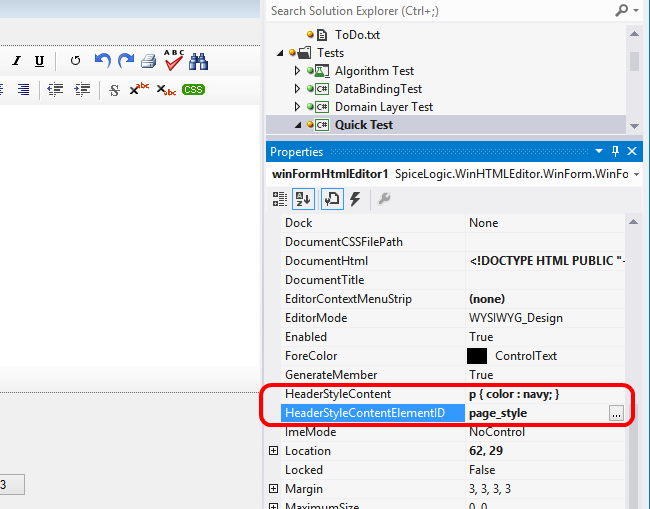

HeaderStyleContent + HeaderStyleContentElementID -- inject (or replace) an inline <style id="...">...</style> block in the head. Set the ID first; setting HeaderStyleContent without an ID is a no-op. Renaming the ID at runtime removes the old <style> block before accepting the new one (ALM bug #197 -- the document never accumulates stale style elements).

Walk-through: the help-desk article editor

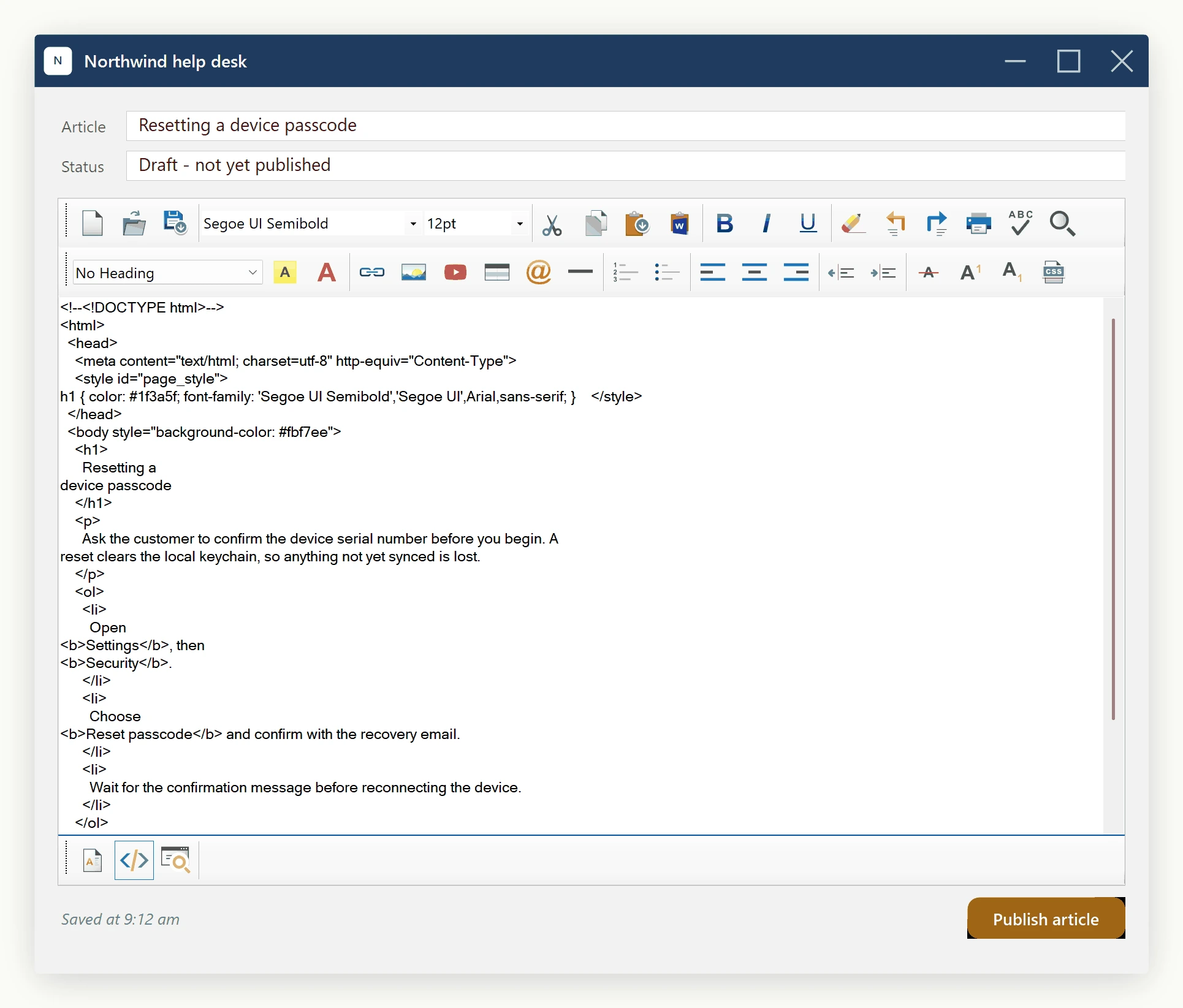

The team picks Inter as the typing font, 11pt as the typing size, a cream body background, and a navy default text color. Article headings should be in the brand navy and call-out boxes need a soft yellow background -- those go into an inline style block in the head, because the rules are specific to the article editor and should travel with the saved HTML rather than depend on an external file.

private void Form1_Load(object sender, EventArgs e)

{

    // Body defaults -- the typing experience.

    htmlEditor1.DefaultFontFamily   = "Inter";

    htmlEditor1.DefaultFontSizeInPt = "11pt";

    htmlEditor1.DefaultForeColor    = ColorTranslator.FromHtml("#0A2540");

    htmlEditor1.BodyColor           = ColorTranslator.FromHtml("#FBF7F2");



    // Head-scoped rules -- the document's own little stylesheet.

    htmlEditor1.HeaderStyleContentElementID = "kb-article-style";

    htmlEditor1.HeaderStyleContent =

        "h1, h2, h3 { color: #0A2540; }" +

        ".callout {"  +

        "  background:#FFF3CD;" +

        "  padding:12px;" +

        "  border-left:4px solid #FFC107;" +

        "  margin:8px 0;" +

        "}";

}

Two months later the marketing team adds a global stylesheet for the help-desk web property and asks the editor to render against it. Switching is a one-line change:

htmlEditor1.DocumentCSSFilePath = "https://helpdesk.example.com/static/brand.css";

The inline rules in HeaderStyleContent can stay -- the two head-scoped approaches coexist as independent elements. The inline block stays specific to the article editor; the linked stylesheet contributes the rest of the brand.

Edge cases

Setting BodyStyle after individually setting DefaultFontFamily, DefaultFontSizeInPt, and DefaultForeColor will overwrite all three -- it replaces the entire body style attribute. Use one approach per startup pass, not both.

The font-size setter accepts a string for a reason: CSS allows "11pt", "15px", "1.1em", "larger". The toolbar combo box and the editor's internal logic all assume pt. If a non-pt unit is set, the toolbar will not be able to display it in its size combo until the user types text and triggers a re-read; stick to pt unless there is a reason not to.

BackgroundImagePath writes a CSS url(...) expression. The path can be local (C:\images\paper.png) for an authoring tool, or a URL for a web-style article preview. The same caveats apply as for any local image reference -- if the saved HTML will be opened on another machine, switch to a hosted URL or embed via EmbedLocalImagesAsBase64() (see Embedding Local Images using Data URIs).

Shipping

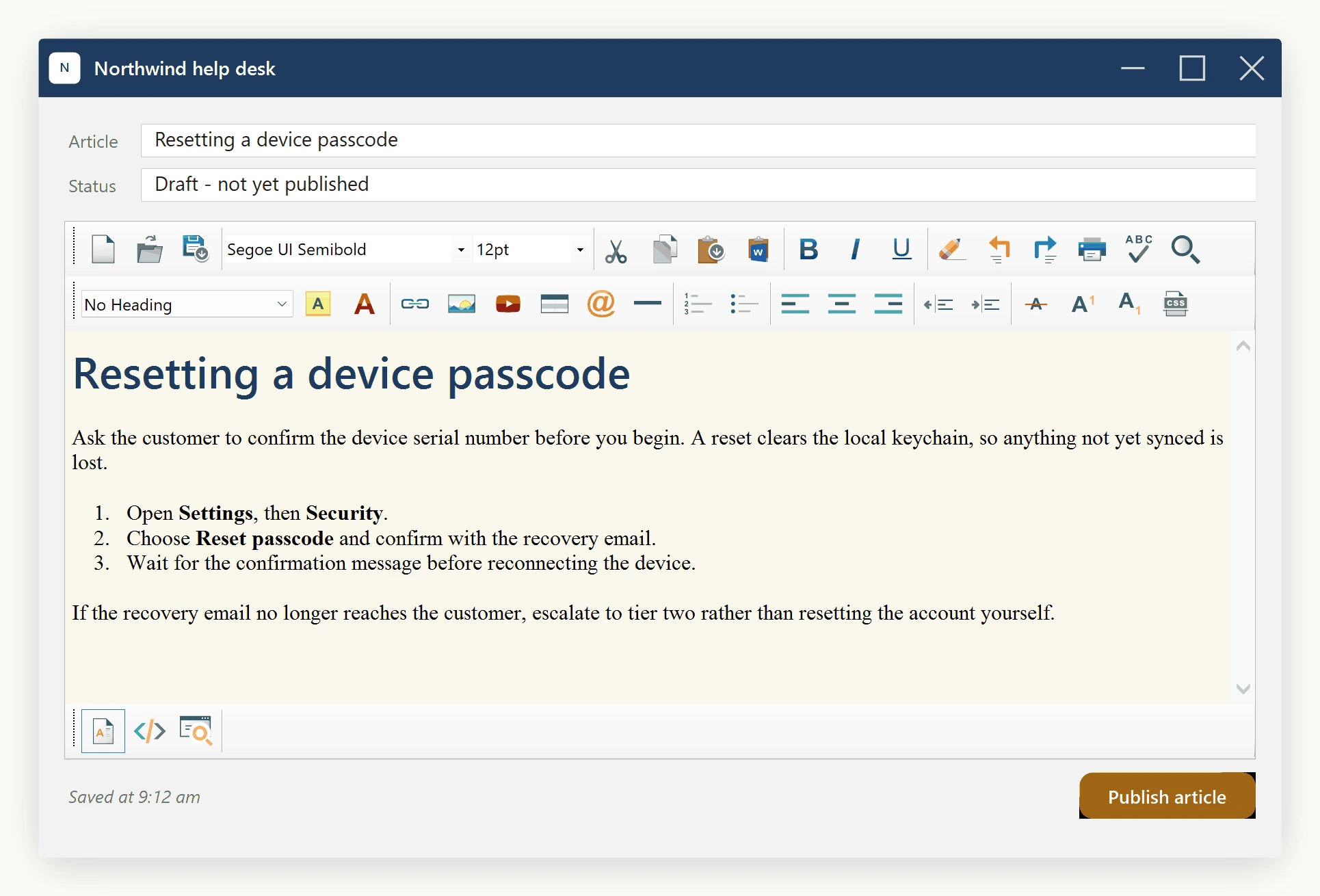

The help-desk team demos again. The editor now opens on a cream background, with Inter at 11pt waiting for the cursor. The user types a heading, hits the H1 button, and the navy color from the head stylesheet appears immediately. The founder says nothing about the editor looking different from the rest of the app, which is how the developer knows it landed.
